75UR762H (EU/CIS)

4K UHD Hospitality TV with Pro:Centric Direct

Key Features

4K UHD Hospitality TV with Pro:Centric Direct

* 65 inch * All images in this web page are for illustrative purposes only.

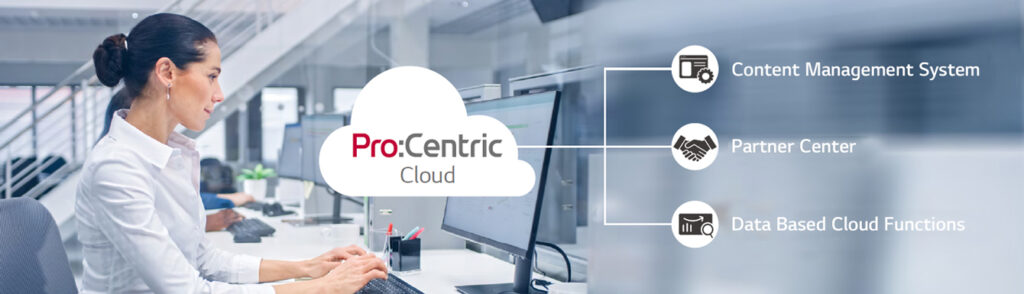

Pro:Centric Cloud

Pro:Centric Cloud improves the usability of enterprise's CMS solution and cloudification of system, reinforcing the service of 3rd party solution. It also offers various design templates, improving data collection and analytics platform with an eye-catching dashboard.

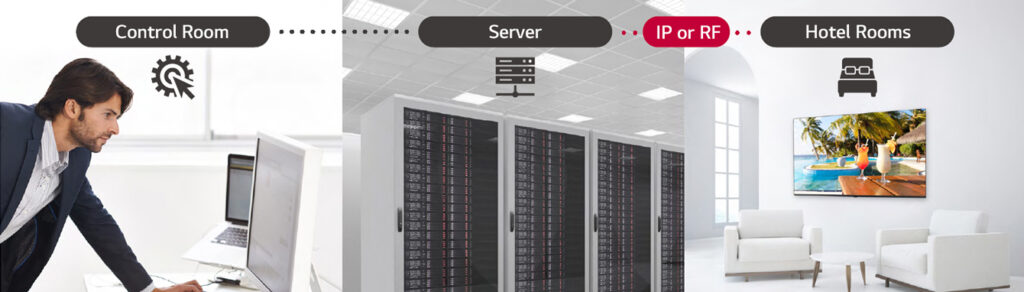

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room. The latest PCD version provides IoT-based inroom control. These IoT will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence. * Some features may not be supported based on PCD versions.

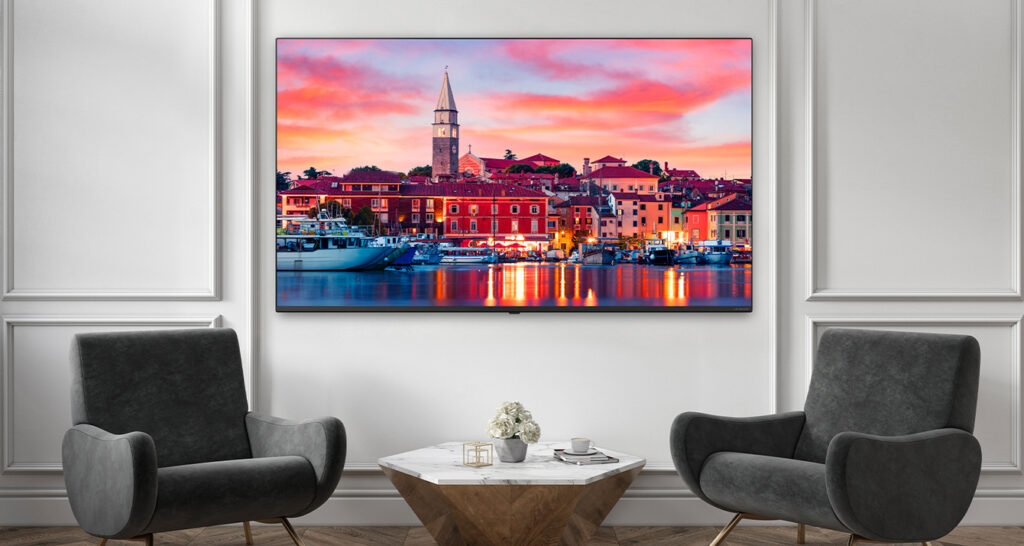

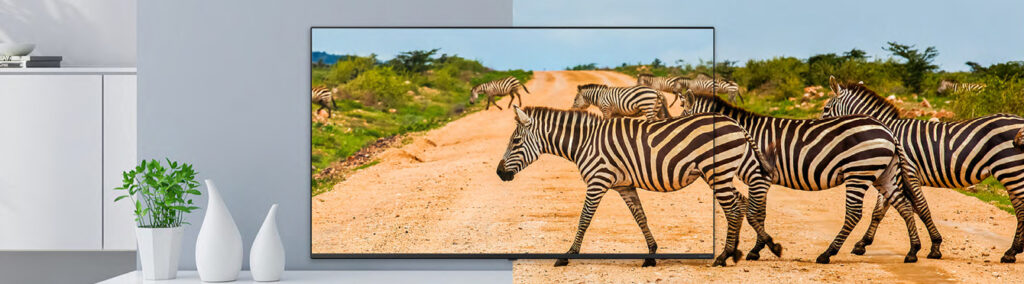

Slim Bezel That Makes TV a Sophisticated Objet

UR762H series with a slim bezel is designed to blend into any interior and delivers an immersive viewing experience without any interruption.

SoftAP

Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the SoftAP. It supports Bridge Mode, allowing administrators to manage in-room SoftAP information such as signal level, SoftAP passwords, etc.

* SoftAP should be set in the installation menu after the TV is turned on. * Smart Mirroring may not be operated at the same time

More Innovative LG webOS 5.0

Explore LG Smart TV features, and discover TVs that deliver innovative technology, remarkable clarity, and true-tolife colors. Mood Display & Gallery Mode enable you to utilize the TV as a customized clock and an artwork which perfectly harmonizes with your space and life

Welcome Video / Screen

With the capability to display several images, Commercial Lite TVs allow for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for

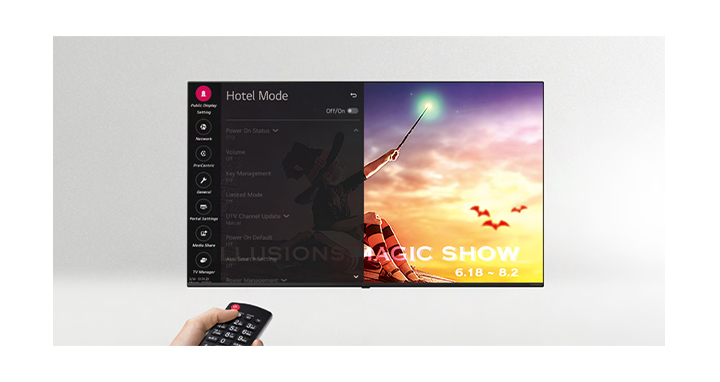

Hotel Mode (Public Display Mode)

From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

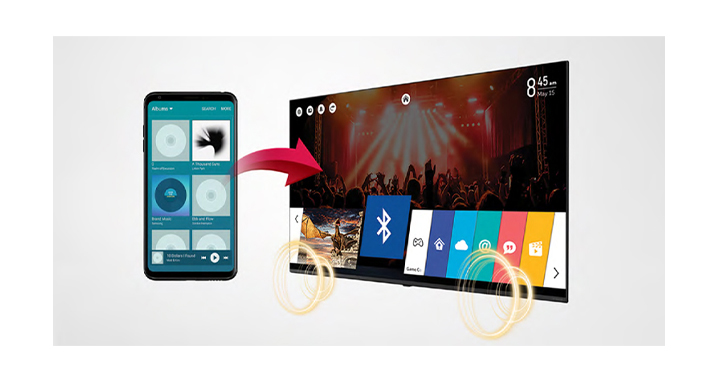

Bluetooth Sound Sync

Bluetooth Sound Sync enables users to listen to music on a mobile device through TV speakers via Bluetooth connection.

* Support devices for Bluetooth Sound Sync: Android (above v4.4 KitKat) / iOS based mobile device

Tech Spec

Display

Inch 50″

Resolution 3,840 X 2,160 (UHD)

NanoCell No

HDR 10 Pro / HDR Dolby Vision / HLG Yes / No / Yes
Audio

Audio Output 10W + 10W

Speaker System 2.0 ch

DOLBY ATMOS No

LG Sound Sync Yes (Required Bluetooth)
Broadcasting System

Digital (Terrestrial, Cable, Satellite) DVB – T2 / C / S2

Analog (NTSC / SECAM / PAL) SECAM / PAL

Global IPTV Support Yes
Hospitality Solution

Solution Type Pro:Centric (Smart, Cloud, Direct, V), Quick Menu 4.0

DRM Yes

Inch	50″
Resolution	3,840 X 2,160 (UHD)
NanoCell	No
HDR 10 Pro / HDR Dolby Vision / HLG	Yes / No / Yes

Audio Output	10W + 10W
Speaker System	2.0 ch
DOLBY ATMOS	No
LG Sound Sync	Yes (Required Bluetooth)

Digital (Terrestrial, Cable, Satellite)	DVB – T2 / C / S2
Analog (NTSC / SECAM / PAL)	SECAM / PAL
Global IPTV Support	Yes

Solution Type	Pro:Centric (Smart, Cloud, Direct, V), Quick Menu 4.0
DRM	Yes

Feature

Smart	webOS 5.0, Gallery Mode, Web Browser, Pre-loaded App, Magic Remote Compatibility (Ready, MR18HA), Mood Display, SoftAP, Wi-Fi, Screen Share (Miracast), Smart Share, Bluetooth Audio Playback, HDMI-ARC (HDMI2), Voice Recognition (Standalone / Solution), IoT, USB Cloning, SI Compatible Protocol (TV Link Tuner, RS-232C), IR Out (RS-232C 4 Pin, HDMI), Anti-theft System (Kensington Lock, Credenza / Security Screw Hole (Except 75”/65″), Lock Down Plate (For Easy Installing) (Except 75”/65″))
Hospitality	Hotel Mode, One Channel Map, IP Channel Manager, External Speaker Out (UR762H0ZC), Instant ON, V-Lan Tag, External Clock Compatibility (LEC-005), Conformal Coating, Healthcare Headphone Mode, Video Tag (2 Supported)

Smart

webOS 5.0, Gallery Mode, Web Browser, Pre-loaded App, Magic Remote Compatibility (Ready, MR18HA), Mood Display, SoftAP, Wi-Fi, Screen Share (Miracast), Smart Share, Bluetooth Audio Playback, HDMI-ARC (HDMI2), Voice Recognition (Standalone / Solution), IoT, USB Cloning, SI Compatible Protocol (TV Link Tuner, RS-232C), IR Out (RS-232C 4 Pin, HDMI), Anti-theft System (Kensington Lock, Credenza / Security Screw Hole (Except 75”/65″), Lock Down Plate (For Easy Installing) (Except 75”/65″))

Hospitality

Hotel Mode, One Channel Map, IP Channel Manager, External Speaker Out (UR762H0ZC), Instant ON, V-Lan Tag, External Clock Compatibility (LEC-005), Conformal Coating, Healthcare Headphone Mode, Video Tag (2 Supported)

Jack Interface

Set Side	HDMI In (2.0), USB 2 (2.0), RF In 2, CI Slot (CI+ 1.4 ECP)
Set Rear	HDMI In 2 (2.0), Headphone Out, Digital Audio Out (Optical), RS-232C (Phone Jack, 4 Pin), External Speaker Out (3.5 mm Phone Jack) 2 (Spk-out 1 (Stereo, Max 2 W with 8Ω), Vol. Control 1) Audio Line Out (3.5 mm Phone Jack) 2 (Line-out 1 (Stereo, 0.4 Vrms), Vol. Control 1) , RJ45 (Usage Purpose) 2 (Ethernet, Aux), Clock Interface (RJ12)

Dimension

VESA Compatible 200 × 200 mm

W x H x D / weight (without stand) 1,121 × 651 × 57.1 mm / 12.1 kg

Weight (Shipping) 15.0 kg
Power

Power Supply (Voltage, Hz) AC 100~240 V, 50/60 Hz

Power Consumption (Typ. / Max.) 119 W / 130 W

Standby Power Consumption 0.5 W
Accessory

Accessory Remote Type (S-Con / MMR (Option)), Chromecast Dongle Anti-theft Cover (Option), Power Cable (75”, 65”, 55”, 50” : 1.5 m / Straight, 43” : 1.55 m)

VESA Compatible	200 × 200 mm
W x H x D / weight (without stand)	1,121 × 651 × 57.1 mm / 12.1 kg
Weight (Shipping)	15.0 kg

Power Supply (Voltage, Hz)	AC 100~240 V, 50/60 Hz
Power Consumption (Typ. / Max.)	119 W / 130 W
Standby Power Consumption	0.5 W

Accessory	Remote Type (S-Con / MMR (Option)), Chromecast Dongle Anti-theft Cover (Option), Power Cable (75”, 65”, 55”, 50” : 1.5 m / Straight, 43” : 1.55 m)

Required Listing (Certification)

Safety	CB, CU TR
EMC	CE
Old Lable (-2021.3) ErP Class	A+
Old Lable (-2021.3) On Power Consumption	70 W
Old Lable (-2021.3) Luminance Ratio (%)	65%
Old Lable (-2021.3) Average Annual Consumption (kWh)	97 kWh
New Lable (2021.3-) SDR (Grade / On Mode)	G / 87 W
New Lable (2021.3-) HDR (Grade / On Mode)	G / 104 W
