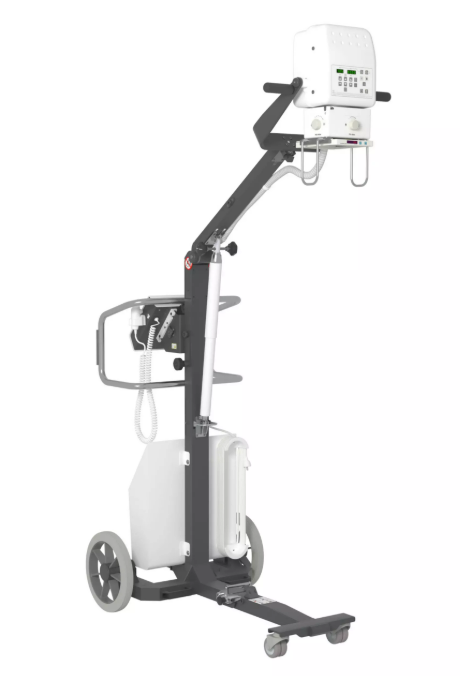

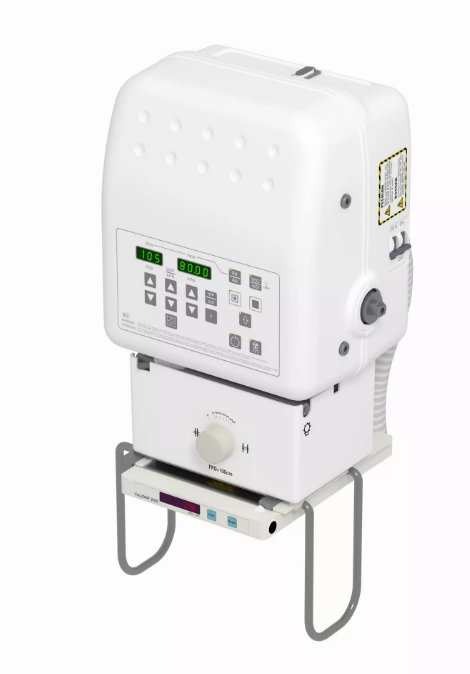

AeroDR MPX (including AeroDR PX) portable X-ray unit is an equipment designed for general radiography in hospitals, clinics, radiology imaging centers and medical practices. It is suitable for taking diagnostic radiographic exposures of the skull, spinal column, chest, abdomen, extremities, and other body parts in intensive care units, emergency rooms, radiology departments and physicians’ offices. It is also usefull for mobile application and also for veterinary.

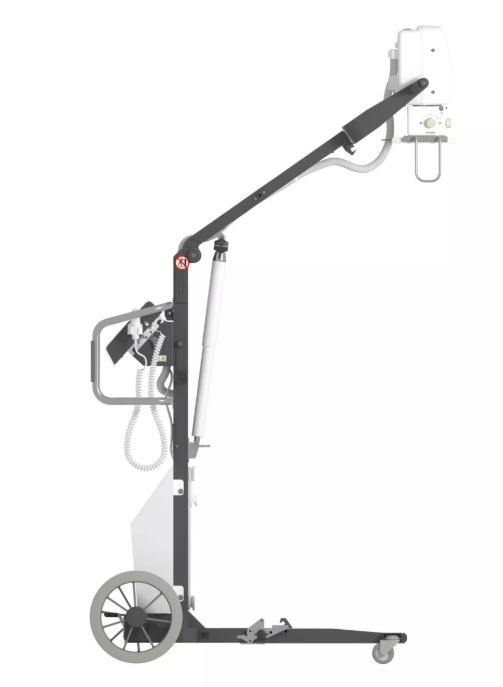

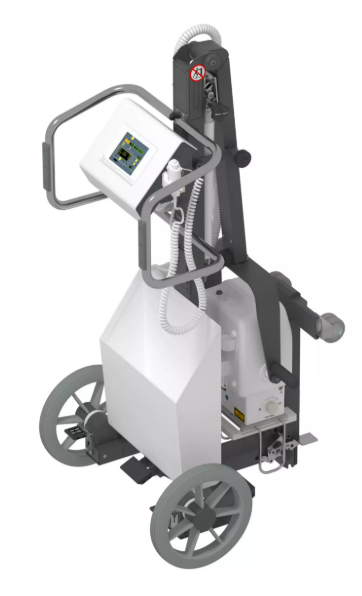

AeroDR MPX can be moved it around easily with lightweight design, only 55 kg.

AeroDR MPX/PX solutions can be configured with one of Konica Minolta powerful softwares depending on the needs on site. Konica Minolta console softwares help to increase image quality and workflow.
CS-7:
• Advanced image quality
• Realism image processing algorithm
• Intelligent Grid
• Tube / Gauze visualization
• Lung Lack / Motion Blur
• Statistic tool
ImagePilot:
• All in one console
• Acquisition-Workstation-Storage
• Mini-pacs features
• Bone suppression
• Orthopedic measurement tools
• Backup tools
• Veterinary application

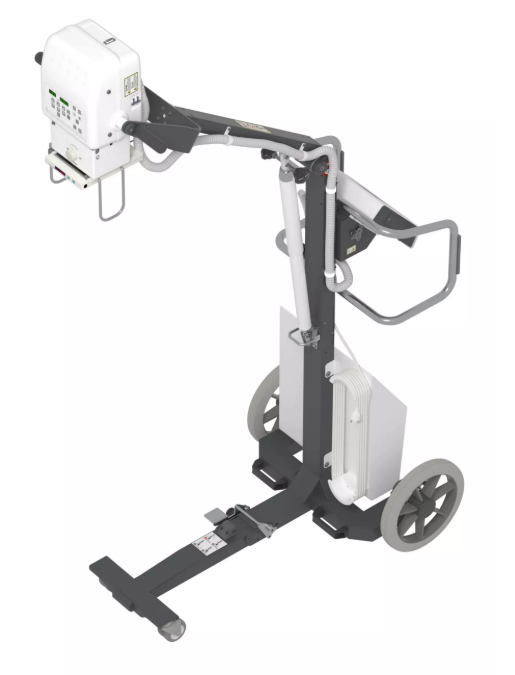

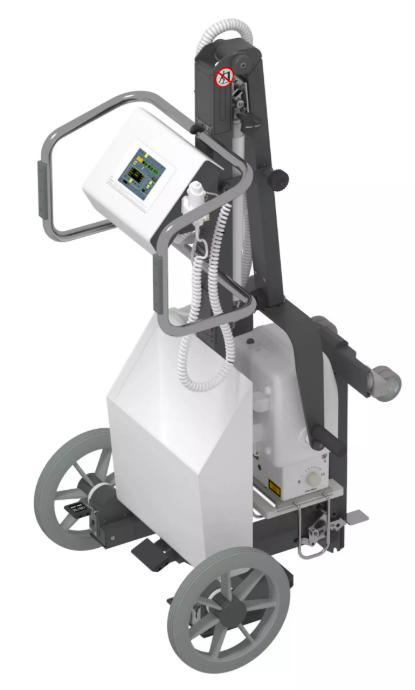

With foldable front wheels feature Mobile cart can be loaded easily into the van or any other transportation vehicle to move it for mobile applications.

AeroDR MPX/PX solutions allows to choose flat panel detectors according to the needs along with console software selection.

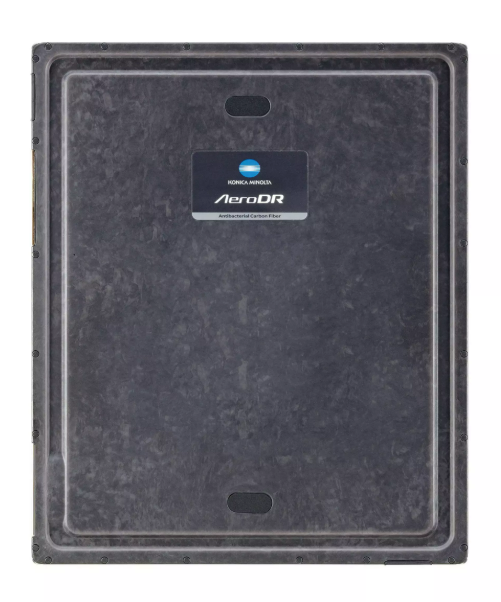

Glass-free panels
• Unique features decreasing drop risk
• Unique features increasing workflow
• Long-lasting antibacterial exterior material

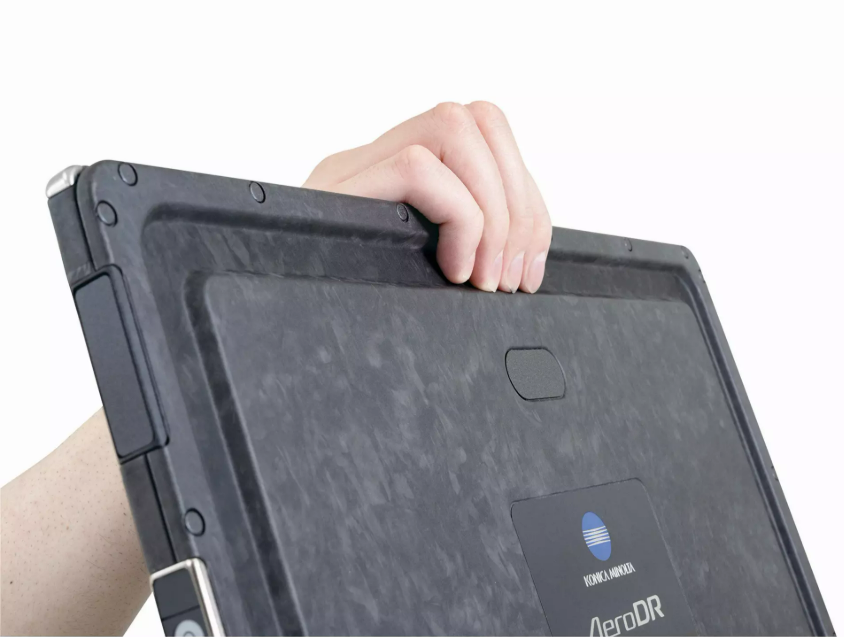

• Unique grip design
• Lightest weight panels
• Quickest charging panels
• 100 microns
• Aero-storage

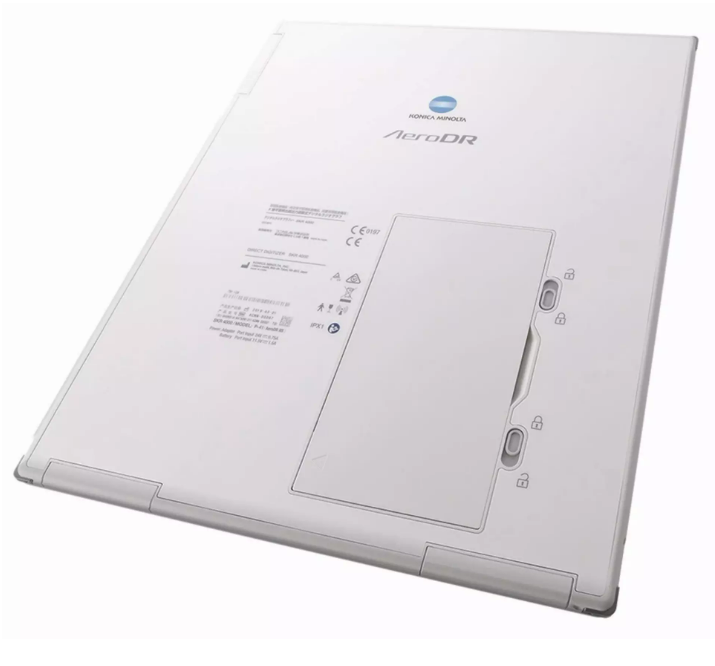

AeroDR NS panel
• Economical solution
• AeroStorage

Makes it easy to move laptop with the mobile system and ensure the security of the laptop when the system is not used.
kVp | 40-125 |
Frequency | 300 kHz |
mA | 5-100 |
Time | 1-10.000 ms |
mAs | 0.1-250 |
APR | 20 |
Focal spot | 0.5/1.8 |
KHU | 47 |
Red Laser | optional |
Power cord | 6 m |
Exp. cord | 3 m |
Line input | 100-240 VAC |
Weight MPX | 56 kg – 65 kg (with PX) |
Weight PX | 15kg |
kVp | 40-125 |
Frequency | 300 kHz |
mA | 5-100 |
Time | 1-10.000 ms |
mAs | 0.1-250 |
APR | 20 |
Focal spot | 0.6/2.7 |
KHU | 40 |
Red Laser | optional |
Power cord | 6 m |
Exp. cord | 3 m |
Line input | 220-240 VAC |
Weight MPX | 56 kg – 65 kg (with PX) |
Weight PX | 15kg |
